  1. Home > Packaging Machines
V1020
V1020
Automatic Viscous Material Packing Machine
V1020
V1020
High efficiency and cost-effective model! Horizontal sealing and blade cutting in one process to improve packing efficiency.
Packaging Form
Arraytitle
Packaging Object

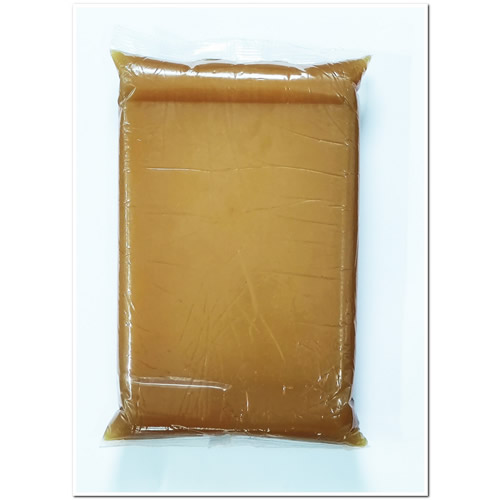

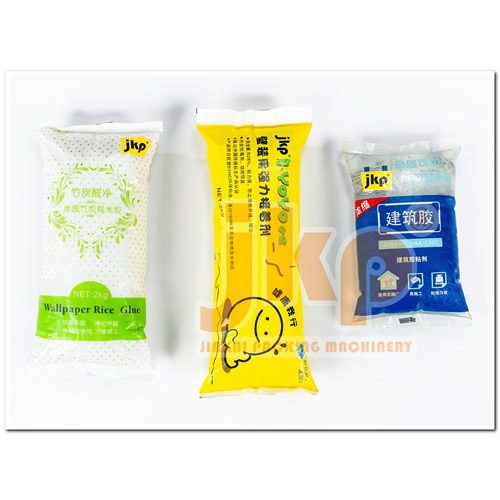

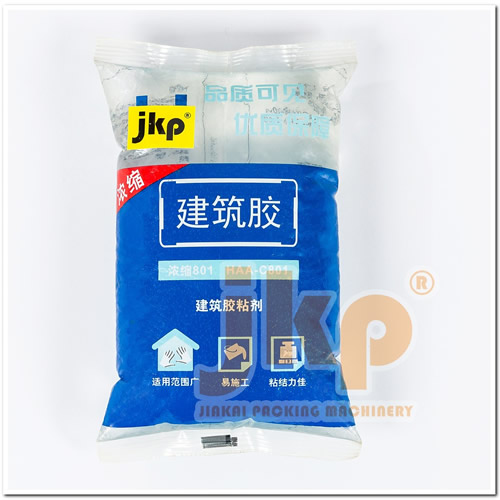

Packaging Samples
Applications and Features

Applications:

  • Food industry products: bean paste, lotus seed paste, fruit stuffings, jams, liquid egg, sesame paste, meat sauce, chili sauce, salad dressings, greases, cheese, etc.

  • Chemical industry products: greases, slurry, detergents, industrial glue, lubrication oils and other types of liquid, semi liquid and viscous materials.



Features:

  1. Suitable for packaging liquid and viscous materials such as stuffings, sauces, slurry, glue, and greases.

  2. Adoption of highly reliable electrical appliances and pneumatic components to ensure a longer stable and reliable machine operation.

  3. The end seal and cutting knife are at the same working position, which improves the packaging efficiency.

  4. The squeeze-exhaust extrusion method is adopted, which is especially suitable for the packaging of highly viscous materials.

  5. Easy to use. Touch screen panel is very user friendly.

  6. Self-inspection warnings proactively prompt when maintenance is required.

  7. Capable of packing materials with high temperature. This helps lower down the production cost and improve the packaging efficiency.

  8. Can be combined with filling system of various pump types such as rotor pump, plunger pump, sine pump, gear pump, screw pump, and etc. We will choose the pump that most suitable for your raw product.



Technical Parameters
Machine Model
V1020
Packaging Type
Rectangle
Packing Speed
3-15ppm
Package Unit Weight
500-3000g
Roll Film Width
120-430mm
Bag Length
200-600mm
Printer
Optional
Mark Sensor
Optional
Voltage
3×380V+N/50Hz
Power Consumption
1.5kw+1.5kw
Air Supply
0.6Mpa 0.3M3/min
Film Materials
NY+PE
Machine Weight
650Kg
Machine Size
1500×800×1550
